Integrity-based, the market is changing, and integrity will never change...

Drilling machine

  • Z3050*16/1
  • Z3050*16/1
  • Z3050*16/1
  • Z3050*16/1
  • Z3050*16/1
  • Z3050*16/1
Z3050*16/1 Z3050*16/1 Z3050*16/1 Z3050*16/1 Z3050*16/1 Z3050*16/1

Z3050*16/1

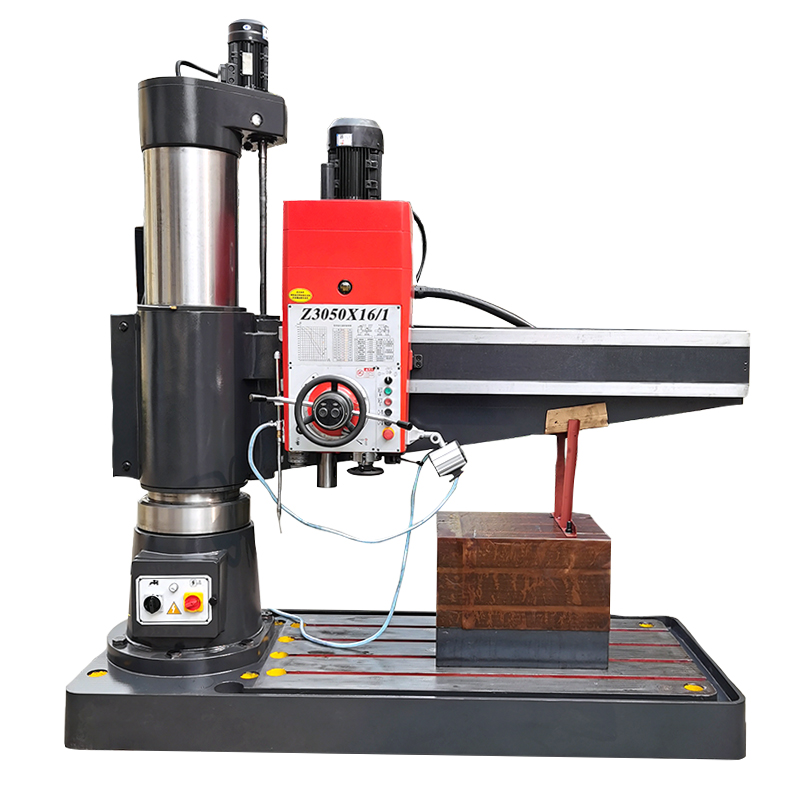

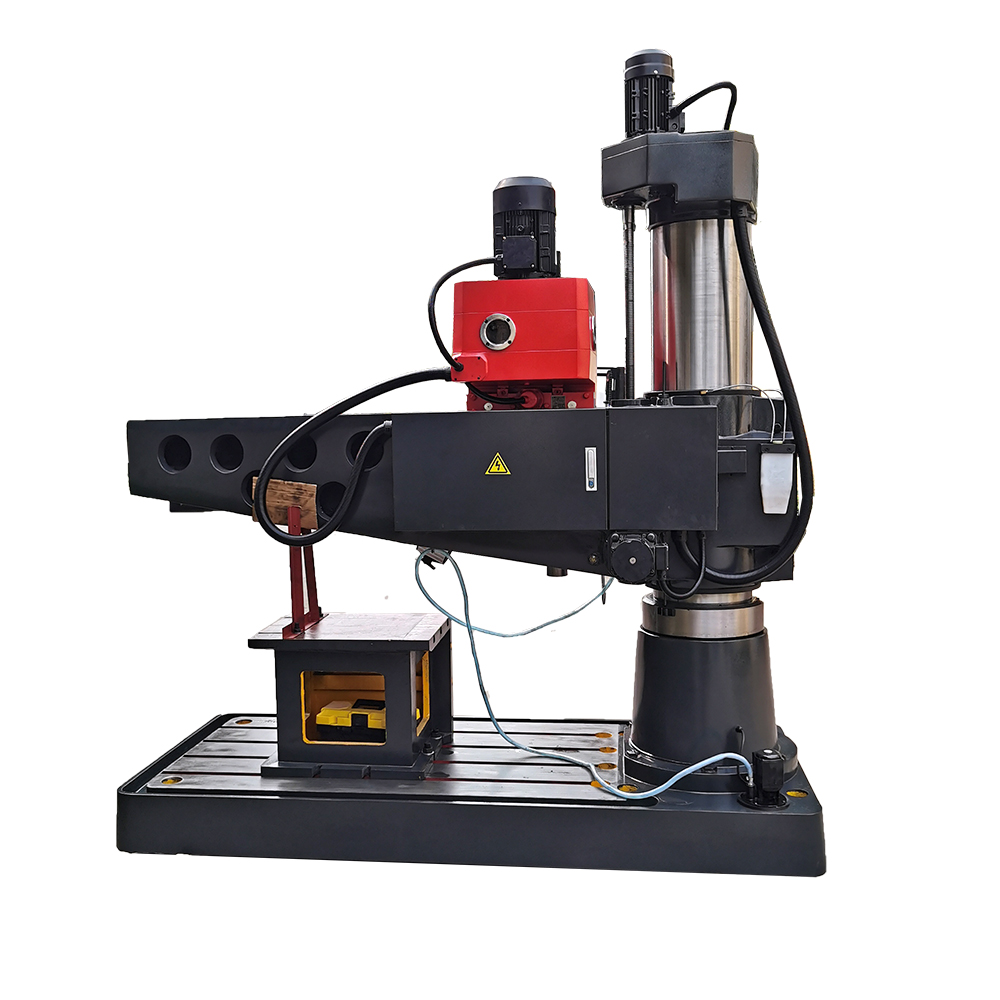

                 Hydraulic radial drilling machine Z3050*16/1


Specifications

Radial drilling machine specifications
Z3050×16/1
Max. drilling diameter
50mm
Distance between spindle axis and column
350-1600mm
Distance spindle nose and working surface of base
320-1220mm
Spindle travel
315mm
Spindle taper
Morse No.5#
Range of spindle speeds
25-2000rpm
Number of spindle speeds
16step
Range of spindle feeds
0.04-3.20mm/r
Number of spindle feeds
16step
Table size
630×500mm
Distance of headstock horizontal movement
1260mm
Spindle motor power
4KW
Spindle motor power
3300Kg
Overall dimension
2500×1070×2840mm
