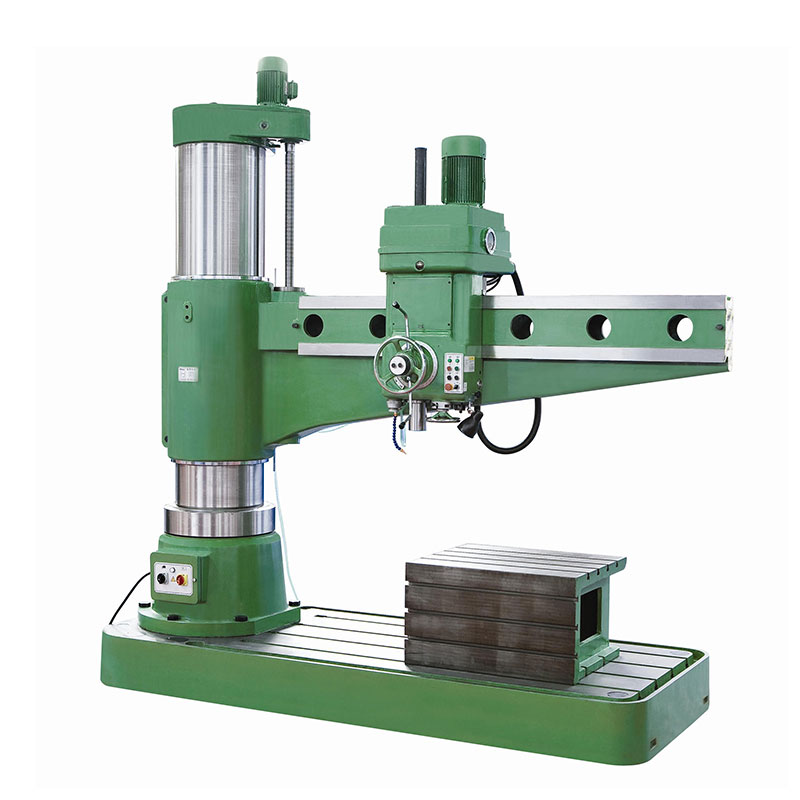

Hydraulic radial drilling machine Z3063*20/Z3080*25
Specifications
| Specification | Z3080×25 | Z3063×20 |
| Max.drilling diameter | 80mm | 63mm |
| Distance from spindle axis to column | 500-2500mm | 450-2000mm |
| Horizontal travel of spindle head on arm | 2000mm | 1550mm |
| Distance from spindle nose to working surface of base | 550-2000mm | 400-1600mm |
| Swivel angle of arm | ±180° | ±180° |
| Spindle taper | MT6 | MT5 |
| Range of spindle speeds | 16～1250rpm | 20～1600rpm |
| Number of spindle speeds | 16 | 16 |
| Number of spindle feeds | 16 | 16 |
| Spindle travel | 450mm | 400mm |
| Power of the main motor | 7.5kw | 5.5kw |
| Worktable size | 1000×800×560mm | 800×630×500mm |
| Overall dimension | 3730×1400×4025mm | 3100×1250×3437mm |
| Machine weight | 10000kg | 6500kg |
