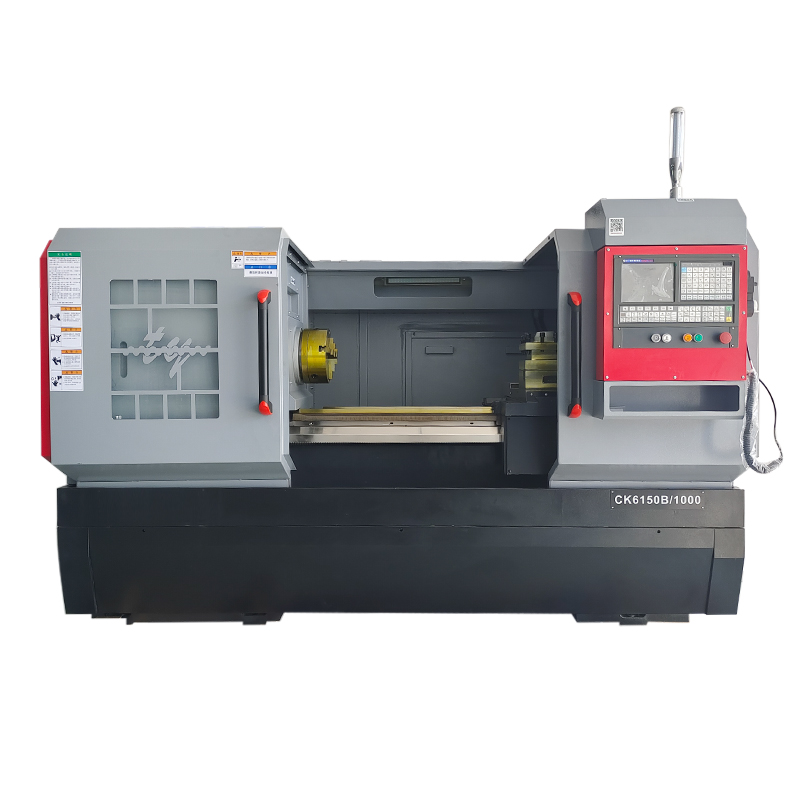

CNC Lathe CK6150
Specification
| Z travel | 500mm/1000mm/1500mm/2000mm |
| X axis servo motor | 6NM |
| Z axis servo motor | 10NM（500mm/1000mm/1500mm）15NM（2000mm） |
| X/Z axis rapid traverse | 8/12 mm/min |
| Spindle bore | Φ82mm |
| Spindle speed steps | 3 |
| Spindle nose type | A2-8 |
| Spindle bore taper | Metric 90（1:20） |
| Spindle speed | 45-180 180-770 600-1600 |
| Spindle motor | 7.5KW/11KW（2000） |
| Tailstock quill diameter | 75mm |
| Tailstock quill stroke | 150mm |
| Tailstock quill taper | MT5 |
| Chuck | ￠250 Manual chuck |
| Tool shank size | 25*25 |
| Tool post | Four station electric tool holder 192*192 |
| Workpiece accuracy | IT6—IT7 |
| Workpiece surface roughness | Ra<3.2 |
| Repeat positioning accuracy | X0.012 z0.016 |
| Noise | ＜80Db |
| Power specification and capacity | three-phase;380V±10％ 、50HZ、11KVA |
| Overall dimension of machine | 2400/2900/3500/3900*1800*2100 |
| Machine weight | 2200/2700/3600/4200KG |
