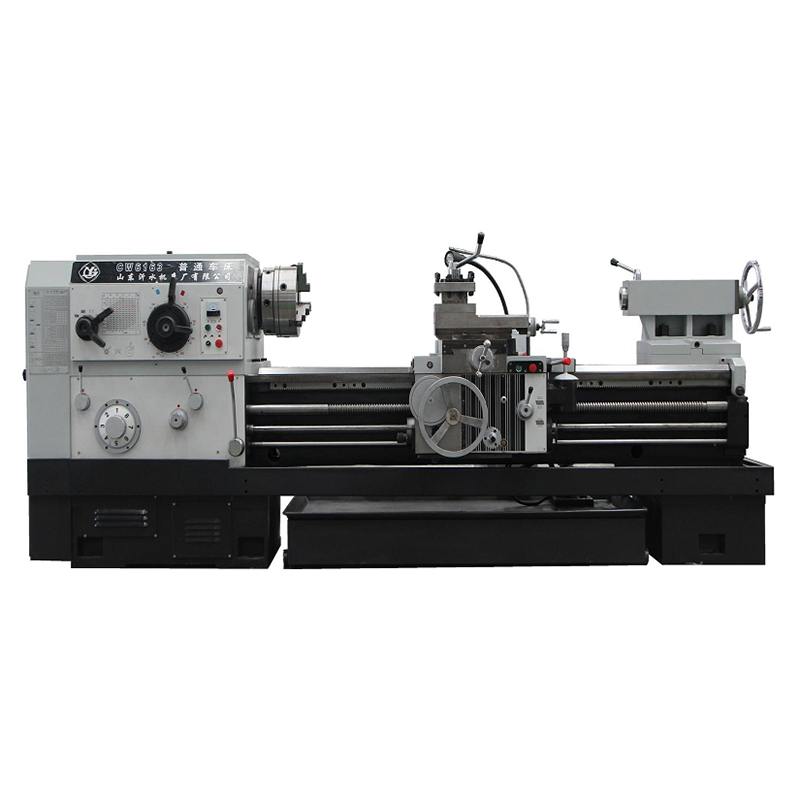

CW6163/CW6180/CW61100 CW SERIES ENGINE LATHE
Characters:
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Headstock gears hardened and precision ground to achieve high precision and low noise.
| Specification | CW6163 | CW6180 | CW61100 |
| Max.swing over bed | 630mm | 800mm | 1000mm |
| Max.swing over cross slide | 350mm | 550mm | 680mm |
| Center Distance | 1500/2000/3000/4000mm | 1500/2000/3000/4000mm | 1500/2000/3000/4000mm |
| Bed Width | 550mm | 550mm | 600mm |
| Max. load capacity | 3T | 3T | 4T |
| Spindle bore | 104mm | 104mm | 104mm |
| Spindle bore taper | Metric φ120/MT5 | Metric φ120/MT5 | Metric φ120/MT5 |
| Spindle nose type | A2-11 | A2-11 | A2-11 |
| Spindle speed steps | FWD.18steps | FWD.18steps | FWD.18steps |
| Spindle speed range | 7.5-1000rpm | 6-800rpm | 5.4-720rpm |
| Chuck | φ315 3-jaw manual | φ315 3-jaw manual | φ315 3-jaw manual |
| Turret/tool post | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position |
| Tool shank size | 30x30 | 30x30 | 30x30 |
| X travel | 320mm | 420mm | 420mm |
| Z travel | 1350/1850/2850/3850mm | 1350/1850/2850/3850mm | 1350/1850/2850/3850mm |
| X axis feed grade/range | 64/0.05-0.912 mm/r | 64/0.05-0.912 mm/r | 64/0.05-0.912 mm/r |
| Z axis feed grade/range | 64/0.1-24.3 mm/r | 64/0.1-24.3 mm/r | 64/0.1-24.3 mm/r |
| Tailstock quill diameter | φ100 | φ100 | φ100 |
| Tailstock quill taper | MT5 | MT5 | MT5 |
| Tailstock quill travel | 250mm | 250mm | 250mm |
| Main drive motor | 11kw | 11kw | 11kw |
| Rapid traverse motor | 1.1kw | 1.1kw | 1.1kw |
| Coolant pump motor | 0.125kw | 0.125kw | 0.125kw |
| Machine Width*Height | 1400×1450mm | 1500×1450mm | 1750×1750mm |
| Machine Length | 3800/4300/5300/6300mm | 3800/4300/5300/6300mm | 4000/4500/5500/6500mm |
| N.W | 3800/4200/4900/5600kg | 4000/4700/5400/6100kg | 5300/5700/6400/7100kg |
