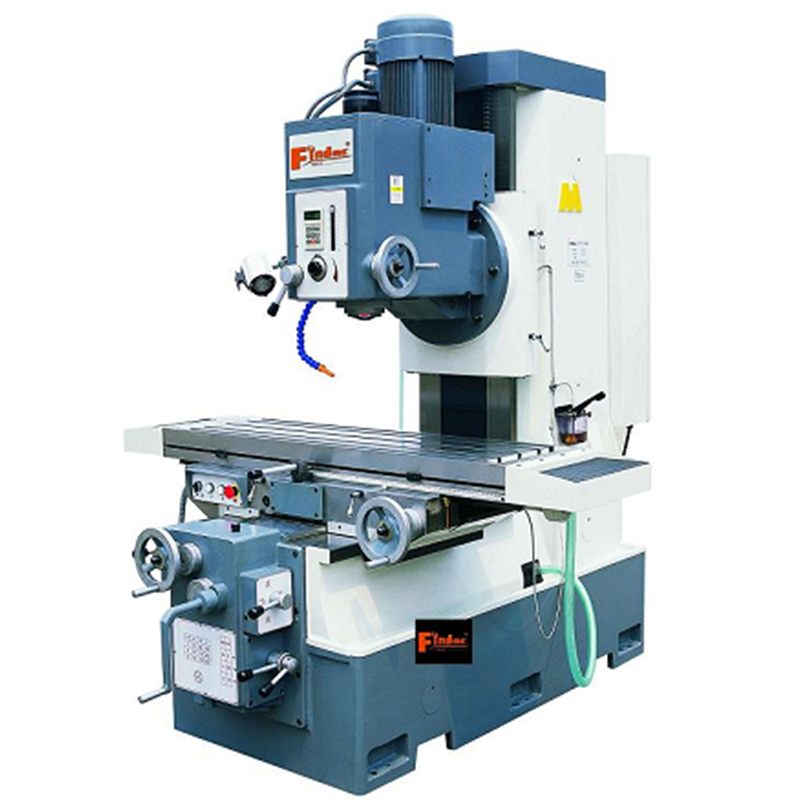

Bed-type milling machine XA7140
| Specification | XA7140 |
| Table size | 1400×400mm |
| Table travel | 800( 1000 optional )×400mm |
| Number/Width/Distance of T-slot | 3-18-100mm |
| Max. load of table | 800kg |
| Distance from spindle axis to column surface | 520mm |
| Distance from spindle nose to table surface | 150-650mm |
| Spindle taper | ISO50 |
| Quill travel | 105mm |
| Spindle speed range (infinitely variable speed) | 18-1800rpm |
| Overall dimension | 2290×1840×2120mm |
| Spindle motor power | 7.5kw |
| Machine weight | 3860kg |
