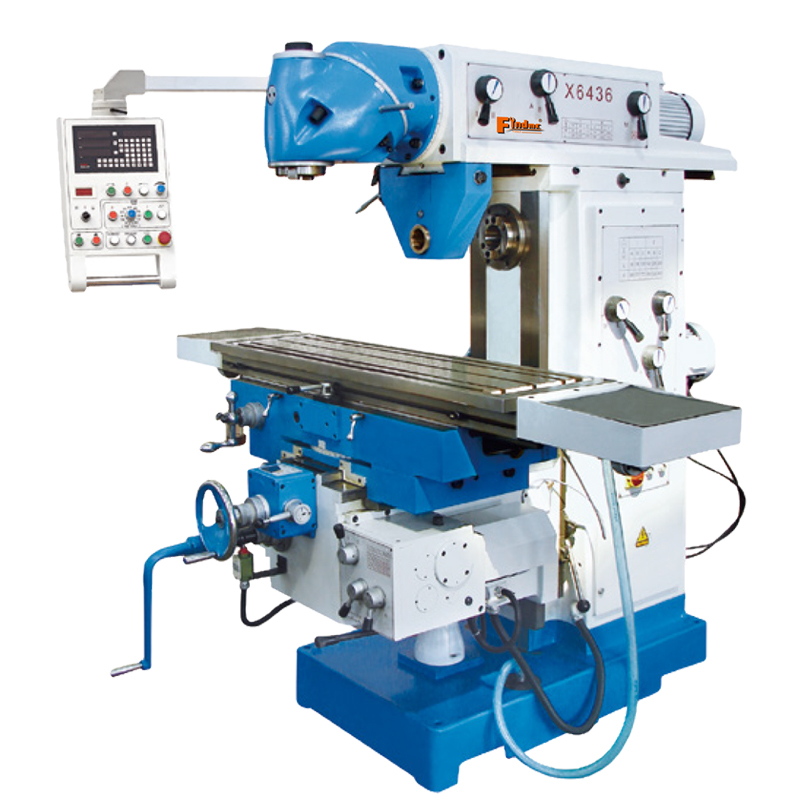

Universal swivel head milling machine X6436
| Specification | X6436 |
| Table size | 1600×360mm |
| Table travel | 1000×320×420mm |
| Number/Width/Distance of T-slot | 3-18-80mm |
| Spindle taper | ISO50 |
| Distance from horizontal axis to table surface | 0-400mm |
| Distance from spindle nose to table surface | 175-590mm |
| Spindle speed | 60-1750/12steps(V) / 60-1800/12steps(H) |
| Table swivel degree | ±45° |
| Ram travel | 500mm |
| Table feed speed | 25-800mm/min(X,Y), 8-267mm/min(Z) |
| Rapid feed speed | 1200mm/min(X,Y), 400mm/min(Z) |
| Spindle motor power | 4kw(H), 4kw(V) |
| Overall dimension(L×W×H) | 2550×2160×2102mm |
| Machine weight | 2500kg |
| Characters: Rectangular guideways with good rigidity and stability. Hardened and ground table surface and guideways. Table swivels in ±45°. 1000mm travel on X axis. | |
