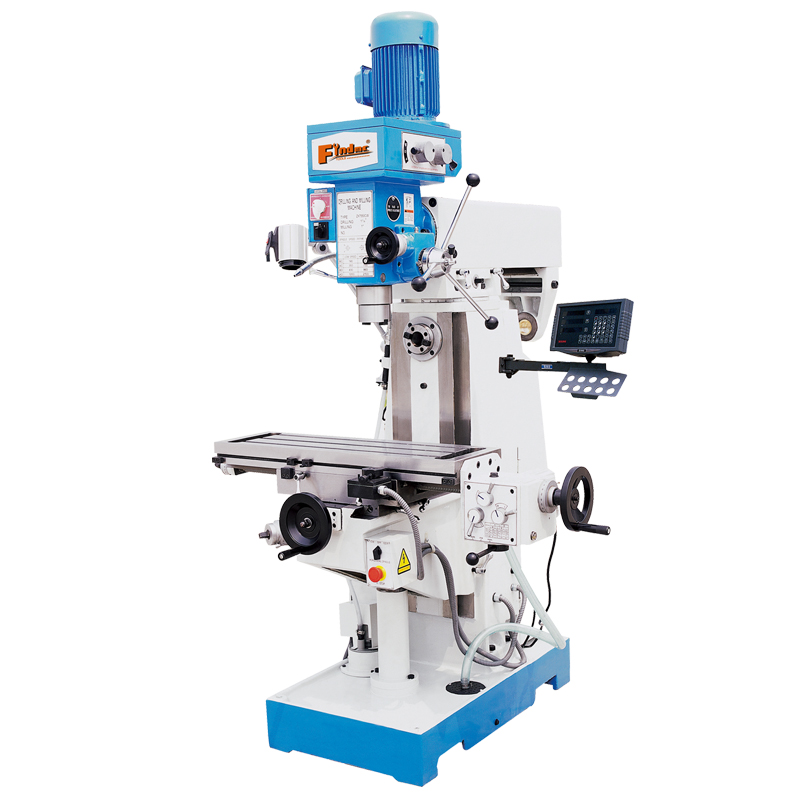

XZ7550CW MILLING DRILLING MACHINE
| Specification | XZ7550CW |
| Table size | 800×240mm |
| Table travel | 400×200mm |
| Distance from spindle nose to table surface | 60-390mm |
| Spindle travel | 120mm |
| Max.drilling dia. | 30mm |
| Max. vertical milling dia. | 25mm |
| Max.end milling width. | 100mm |
| Spindle taper | ISO30(V), ISO30(H) |
| Max.Tapping dia. | M16 |
| Spindle speed range | 115-1750rpm(V), 58-1355rpm(H) |
| Spindle motor power | 0.85/1.5kw(V) , 1.5kw(H) |
| Overall dimension | 1290×1220×2100mm |
| Weight | 970kg |
