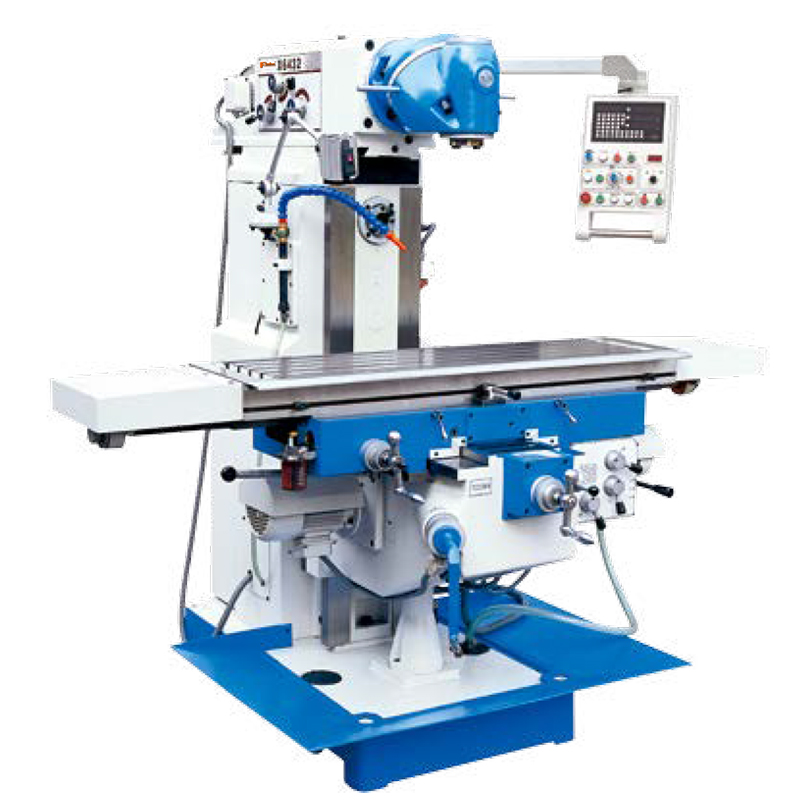

Universal swivel head milling machine X6432
| Specification | X6432 |
| Table size | 1320×320mm |
| Table travel | 1000×300mm |
| Number/Width/Distance of T-slot | 5-14-63mm |
| Spindle taper | ISO40(V/H) |
| Distance from spindle axis to table surface | 220-660mm |
| Distance between spindle axis and boom | 100-600mm |
| Spindle speed range | 45-1600(V), 40-1300(H) |
| Table power feed speed range on X.Y.Z | 20-360mm/min (X/Y), 422mm/min (Z) |
| Spindle motor power | 3kw(V/H) |
| Overall dimension | 2020×1710×1994mm |
| Machine weight | 2100kg |
| Characters: Rectangular guideways with good rigidity and stability. Hardened and ground table surface and guideways. Head swivels in 360°. 1000mm travel on X axis. Automatic feeds on X.Y axes, electric rise and down on Z axis. | |
