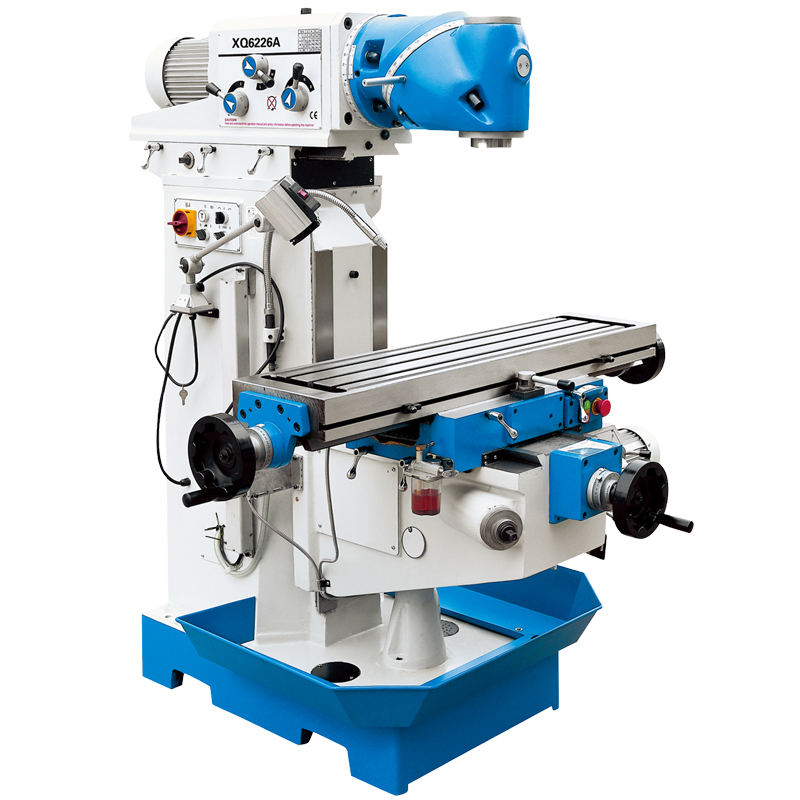

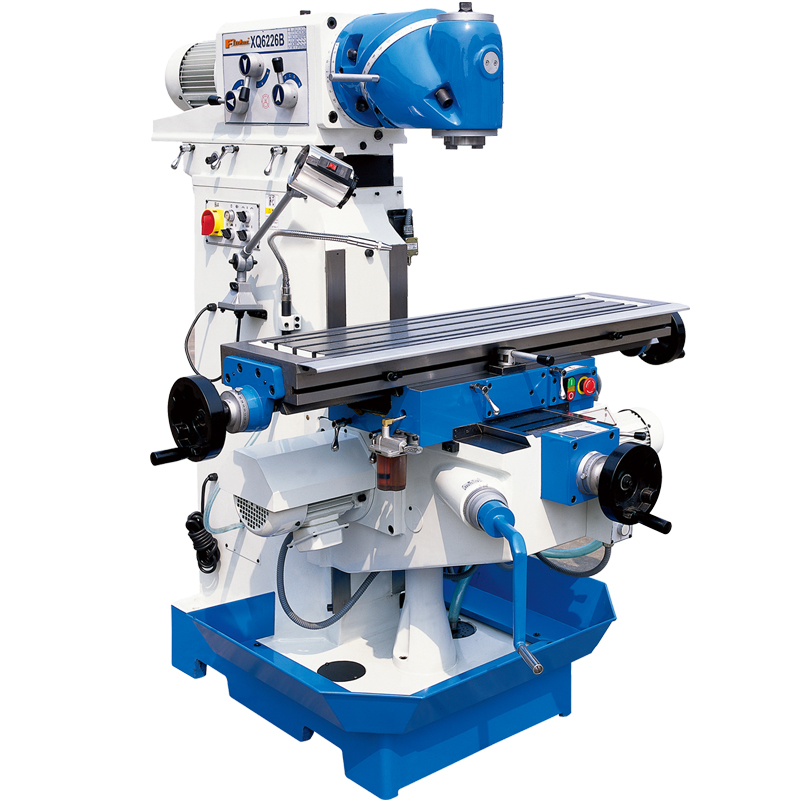

Universal swivel head milling machine XQ6226A/B
| Specification | XQ6226A | XQ6226B |
| Table size | 1120×260mm | 1120×260mm |
| Table travel | 600×270mm | 600×270mm |
| Spindle taper | ISO40 | ISO40 |
| Distance from spindle nose to table surface | 100-480mm | 100-480mm |
| Max. end milling width | 125mm | 125mm |
| Max. vertical milling dia. | 25mm | 25mm |
| Spindle speed range | 45-1660rpm | 45-1660rpm |
| Swivel angle of swivel head | 360° | 360° |
| Overall dimension | 1655×1500×1730mm | 1655×1500×1730mm |
| Spindle motor power | 2.2kw | 2.2kw |
| Machine weight | 1400kg | 1480kg |
| Characters: Head swivels in 360°. XQ6226A automatic feed on X, Y axes, manual on Z axis. XQ6226B automatic feed on X, Y axes, electric rise and down on Z axis. | ||
