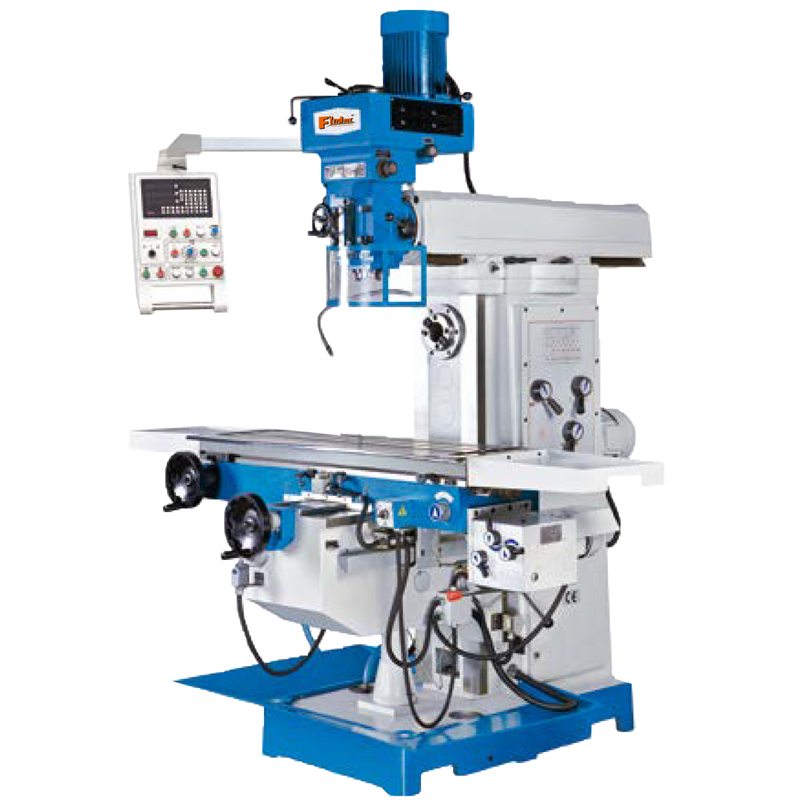

Universal radial milling machine X6336
Specification | X6336 |
Table size | 1320×360mm |
Table travel | 980×320×450mm |
Number/Width/Distance of T-slot | 3-18-80mm |
Spindle taper | ISO40(V) / ISO50(H) |
Spindle speed /steps | 70-3620/10steps(V) / 58-1800/12steps(H) |
Max. drilling dia. | 30mm |
Max. end milling width | 125mm |
Max. vertical milling dia. | 25mm |
Max. tapping dia. | M16mm |
Quill travel | 140mm |
Max. swivel angle of headstock | ±45° |
Vertical spindle axis to column surface | 150-550mm |
Vertical spindle nose to table surface | 200-650mm |
Horizontal spindle axis to table surface | 0-450mm |
Longitudinal/transverse feed X, Y. Z | 15-370 / 15-370 / 575mm/min |
Spindle motor power | 3.7(V) 4.0(H) |
Overall dimension | 2070×2020×2330mm |
Machine weight | 2200kg |
Characters: Rectangular guideways with good rigidity and stability. Hardened and ground table surface and guideways. Head swivels in ±45°. 5HP spindle motor, 7HP in optional. Automatic feeds on X.Y axes, electric rise and down on Z axis. |
